In today’s advanced manufacturing world, CNC machines are the definition of precision, speed, and efficiency. But when it comes to machining complex parts, even seasoned operators know that success requires more than just pushing “Start.” It demands careful planning, the right tools, and a deep understanding of your machine’s capabilities.
Whether you’re facing multiple setups, intricate 3D surfaces, small part features, or tight tolerances, the path to success starts here. Let’s dive into how you can approach complex parts with confidence.

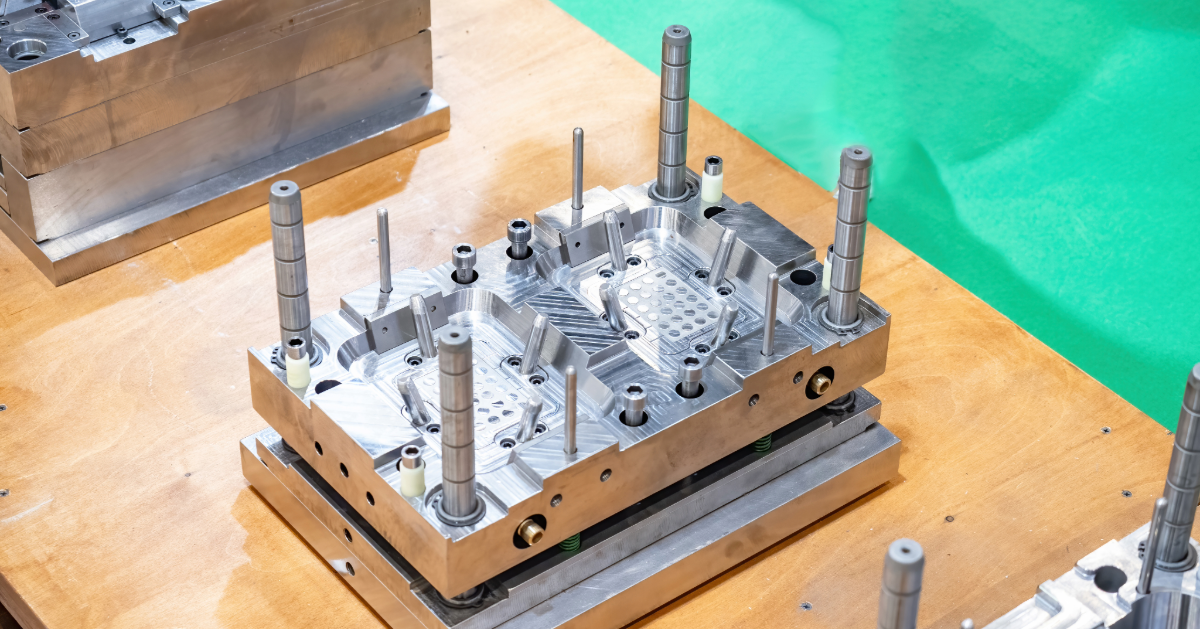

What Makes a Part Complex?
Several factors make some parts more challenging to machine than others:
- Multiple setups: Parts that need to be machined from different angles and planes require a clear strategy and thoughtful sequencing to maintain accuracy.
- Small features: Tiny components demand small, precise tools and high spindle speeds. Without the right setup, tool breakage and long cycle times are common problems.
- 3D features: 3D machining needs smooth machine motion, high-level CAM programming, and a CNC machine that can handle large volumes of code.
- Tight tolerances: Achieving close tolerances means your machine must have exceptional accuracy and repeatability.
- Surface finish requirements: Producing a high-quality surface finish depends on your toolpath, workholding, tool sharpness, machine rigidity, and coolant strategy.
These challenges can seem daunting, but with the right knowledge and preparation, you can overcome them and create perfect parts. Here are some ways to make complex part machining much simpler.
Mastering Multiple Setups
When parts require machining from multiple sides, having a multi-axis CNC machine simplifies the process. Multi-axis machines allow access to multiple faces without needing complex fixtures, reducing errors and setup time.
If a multi-axis machine isn’t available, careful planning becomes crucial. Map out every setup in advance, and use a consistent reference point for re-aligning the part after repositioning. CNC machines with probing technology are invaluable here, helping maintain precision when moving between setups.
Pro Tip: Always leave enough material for strong workholding until the final steps to avoid vibration or loss of rigidity.
Machining Small Parts
Small parts require small tools — and that means higher spindle speeds. Before starting, make sure you have:
- The correct tool sizes for each feature
- A CNC machine capable of delivering high RPMs
- Proper fixturing to prevent part movement
Running a quick tool inventory and compatibility check before you begin can save you from tool breakage and wasted material.
Pro Tip: Use precision workholding solutions designed for thin or small components to maintain stability throughout the machining process.
Milling 3D Features
3D parts bring another level of complexity. They require:
- A machine control that can process dense, high-volume code
- CAM programs that generate smooth toolpaths
- A machine capable of fluid, precise motion
Some older CNC controls may struggle with dense 3D toolpaths, resulting in slower run times or poor surface finishes. Knowing your machine’s control limitations will help you generate the right code and avoid surprises during the cut.
Pro Tip: Use a finishing pass with a smaller step-over to get the best surface quality on complex curves.
Achieving Tight Tolerances
Tight tolerances leave no room for guesswork. Precision machining for tight tolerances relies on:
- Machine calibration before starting
- Proper tooling for roughing and finishing
- Secure, stable workholding
Material selection and machining strategy will also influence your ability to hit tolerance marks. Be sure to fine-tune your feeds, speeds, and toolpaths based on the specific material being used.
Pro Tip: Always rough the part first, leaving a small amount of stock for finishing passes. This reduces stress on the material and improves dimensional accuracy.
Meeting Surface Finish Requirements
A perfect surface finish isn’t just about the final cut — it’s the result of decisions made throughout the machining process.
- CAM toolpaths: Set the correct feeds and speeds.
- Workholding: Ensure there’s no part movement during the cut.
- Sharp tools: Always use new or freshly sharpened tools for finishing passes.
- Coolant: Use the proper coolant for both cooling and chip evacuation.
Attention to each of these areas will make the difference between a good part and a great one.
Pro Tip: Increase spindle speed slightly on finishing passes and slow down feed rates to achieve a mirror-like surface.
Conclusion
Machining complex parts doesn’t have to be intimidating. With careful planning, the right tools, and a deep understanding of your CNC machine’s capabilities, you can transform even the most challenging projects into successful outcomes. From multi-axis milling and precision workholding to advanced probing technologies and vacuum table systems, today’s solutions make it easier than ever to achieve high-quality results. By taking the time to prepare, optimize your setups, and use the best tools for the job, you can confidently tackle any part that comes your way — simplifying complexity at every turn.
