Precision vertical turning CNC machining lathe for heavy duty industrial applications.
| Key Spec | Range |
|---|---|
| Max. Turning Diameter (mm) | 2400-5000 |
| Max. Turning Height (mm) | 1600-2500 |
| Table Diameter (mm) | 2000-5000 |
| Max. Table Load (kg) | 22000-88000 |
| Max. Cutting Force (N/m) | 40000-60000 |

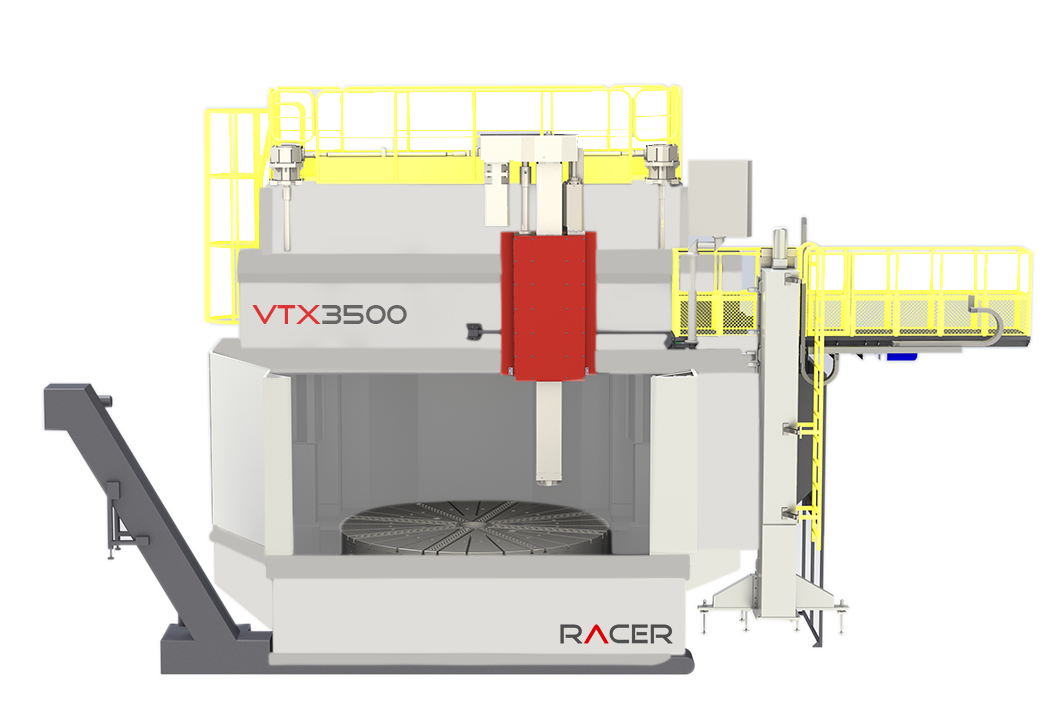

VTX series of vertical turning lathes, boasting a cross rail meticulously engineered for full ram travel. This cutting-edge design, featuring dual guidance on both ends, not only ensures heightened accuracy but also facilitates the simultaneous use of two tools per holder, enabling seamless turning of both internal and external diameters. With programmable indexing capabilities in the Y-axis, the VTX series offers extended height capacity, effortlessly accommodating taller workpieces with precision. Crafted with precision in mind, the VTX series boasts a rail that spans the full length of the machine, empowering operators to perform comprehensive machining tasks. Supported and driven on both ends, this rail guarantees unparalleled rigidity and accuracy during machining operations.
Utilizing Racer’s patented Phantom Machine Design process, the frame of the VTX series excels in absorbing vibrations, promoting enhanced stability and superior surface finish.
Custom sizes available.
Looking for more details?
VTX Series Machining Center Features
- ATC: Automatic tool changers with multiple positions for efficient tool management.
- Travels: Generous travel distances for a wide range of machining applications.
- Accuracy and Precision: High-precision machining capabilities for producing accurate parts.
- Versatility: Customizable options for extended turning height, cross rail positions, and other features to meet specific needs.
- Environmental Friendliness: Designed with energy-efficient features and reduced noise levels.
Technical Data
VTX Series
| VTX-2000 | VTX-2500 | VTX-3500 | VTX-4000 | VTX-5000 | |
| CAPACITY | |||||
| Max. Turning Diameter and Swing mm | 2400 | 2700 | 3500 | 4000 | 5000 |
| Table Diameter mm | 2000 | 3500 | 4000 | 5000 | |
| Max. Turning Height mm | 1600 | 1600 | 1700 | 2500 | |
| Extended Turning Height (optional) | up to 2000 | up to 2500 | 3200 | up to 4000 | |
| Max. Table Load kg | 22000 | 33000 | 44000 | 66000 | 88000 |
| TABLE DRIVE | |||||
| Max. Speed (RPM) | 450 | 260 | 200 | 100 | 80 |
| Power, kW | 44.74 | 44.74 | 99.92 | 89.48 | 119.31 |
| Torque N/M | 30000 | 49000 | 81000 | 200000 | 250000 |
| RAM | |||||
| Ram Size mm | 240x270 | 254 x 254 | 305 x 305 | 305 x 305 | 305 x 305 |
| Max. Cutting Force N/M | 40000 | 50000 | 60000 | 60000 | 60000 |
| ATC | |||||
| Positions | 12(24/32 opt) | ||||
| TRAVELS | |||||
| Distance Table to Ram | |||||
| Ram (Z-Axis) mm | 800 | 1250 | 1300 | 1600 | 1600 |
| Extended Ram mm | up to 1600 | 1600 | 2100 | 2100 | 2100 |
| Cross Rail Travel mm | 600 | 1000 | 1200 | 1600 | 1600 |
| Cross Rail Fixed Positions mm | 200 | 400 | 400 | 400 | 400 |
| Number of Cross Rail Positions Distance mm | 4 | 6 | 6 | 6 | 6 |
| X & Z Rapids mm | 12000 | 10000 | 10000 | 10000 | 10000 |
| X & Z Feed Rates mm | 5000 | 5000 | 5000 | 5000 | 5000 |
