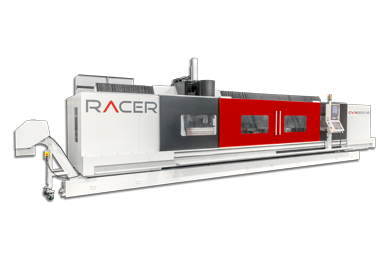

CVX- Traveling Column Vertical Machining Center
Models CVX-700 CVX-850 CVX-1000
TABLE
Table Width (mm) 700 850 1000
Table Length (mm) upto 10 meter upto 10 meter upto 10 meter
Travel ranges (X mm) upto 10 meter upto 10 meter upto 10 meter
Travel ranges (Y mm) 710 860 1010
Travel ranges (Z mm) 800 1000 1200
Max. Table load (kg/M2) 2000 2000 2000
Spindle nose to table surface (Vertical) (mm) 150~950 150~1150 150~1350
T-slot (W x D x N mm) 18 x 125 x 5
SPINDLE
Spindle Taper CAT-50, BBT50, HSKA63 CAT-50, BBT-50, HSKA100
Spindle Center to Column (mm) 780 850 1000
Spindle Speed (rpm) 8000, 6000(2sp), 15000 8000, 6000(2sp), 18000
Draw Bar Force (kgf) 1800 ± 100
Main Motor (con/30min kw) 19 / 23
AXIS SERVOMOTORS
Rapid Feed Rate (X/Y/Z m/min) 40 / 40 / 40 30 / 25 / 25 30 / 25 / 25
Feed Rate (X/Y/Z m/min) 18 10
TOOL MAGAZINE
ATC Type PLATE
CAM Type DUAL ARM
Tool Selection (Bi-direction) RANDOM
Tool Storage Capacity (pcs) 32(40/60)
Max. Tool Diameter (mm) Ø125
Max. Tool Diameter Without Adjacent tools(mm) Ø250
Max. Tool Length 350
Max. Tool Weight (kg) 18
ACCURACY
Positioning XYZ linear axis (mm) per meter 0.05
Repeatability XYZ linear axis (mm) per meter 0.0025
MISCELLANEOUS
Air Requirement (kg/cm2) 6
Voltage 460/3 phase
Power Requirement (KVA) 40
Coolant Tank Capacity (L) 1500 / 1750 / 2000 / 2250 / 2500 / 2750 / 3000
Controller SINUMERIK ONE (828 / 840sl opt)
